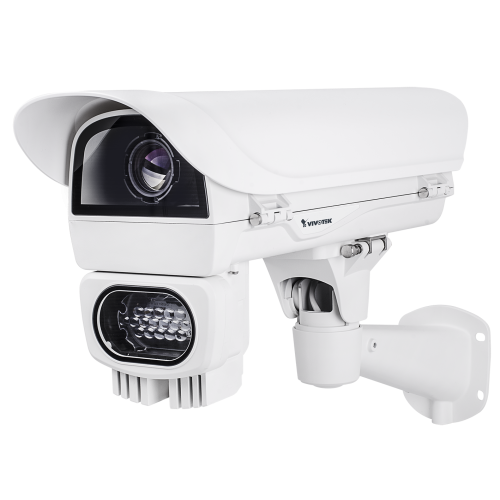

VIVOTEK IP9165-LPR-v2 Kit (Street)
    VIVOTEK

    VIVOTEK IP9165-LPR-v2 Kit (Street)

    Smart City License Plate Recognition Solution (60MPH/90km/hr), i-CS

    Contact us about this product

    Product Contact Form

    Key Features

    • Support License Plate Recognition for over 100 Countries
    • License Plate Reading with Vehicle Type, Color, and Direction Recognition
    • Black and White Lists for License Plate Verification
    • Fully Integrated with VAST 2
    • Various Open APIs Available for 3rd Party Integration
    • Trend Micro IoT Security
    • NDAA Compliance

    Overview

    VIVOTEK’s IP9165-LPR-v2 Kit is a standalone LPR+ camera system, featuring a built-in license plate recognition system along with vehicle type and color recognition. The Traffic VCA LPR+ provides not only license plate reading with white and black-list system for vehicle verification but also the vehicle type and color recognition for traffic flow anlysis or target vehicle tracking application.



    It also offers various APIs for integration with 3rd party backend systems. Featuring with the new evidence function can be combined with a snapshot of the connecting camera through the RTSP stream, providing the road overview and LPR result images simultaneously to reinforce the strength of evidence.VIVOTEK’s IP9165-LPR-v2 Kit is designed for the toll management, community security , and smart city applications.

    Benefits

    Traffic VCA LPR+

    Our latest license plate recognition software, Traffic VCA LPR+, can not only accurately verify a vehicle's license numbers but also provisions supporting parameters such as vehicle type and color. Therefore, multiple variables are factored in for access control and forensics evidence, beneficial to the smart city application.

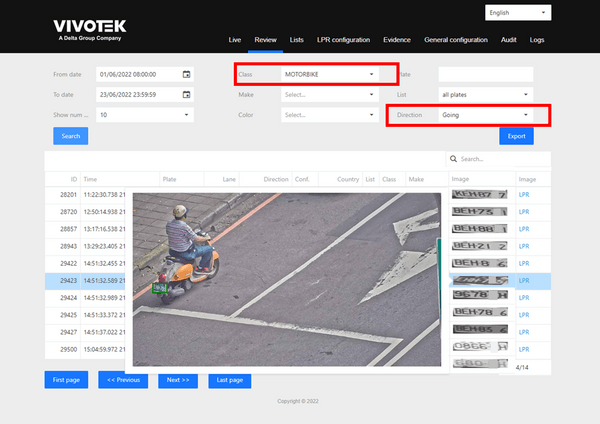

    Tracking Traffic Flows

    Identify the wrong-way driving of target vehicles in a vast of footage. Reinforce the accuracy of law enforcement and reduce the time of forensics search, with the variable selectors in Traffic VCA LPR+.

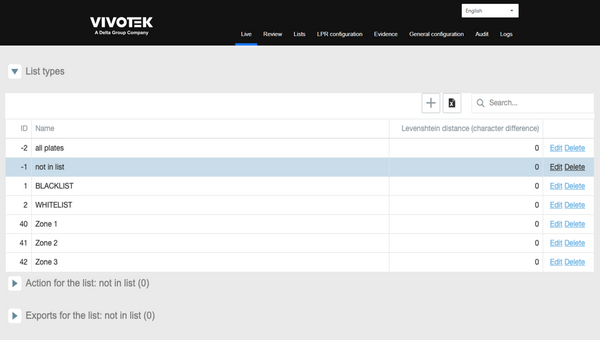

    List Management for Number Plate Verification

    Users can manage license plate lists for various purposes, such as a white list that triggers a welcome message, a black list that triggers an alarm, and an all plates list for access control management. Multiple lists are supported, with no limit on the number of supported license plates.

    Support License Plate Recognition for over 100 Countries

    The IP9165-LPR-v2 Kit can read license plates for 100+ countries or states simultaneously. When a number plate is recognized and matched the data in list such as white list, It can convert number plates into Wiegand signals through VIVOTEK Wiegand converter (AO-20W) to work with an access control system.

    Trend Micro IoT Security for Cybersecurity

    NDAA Compliance

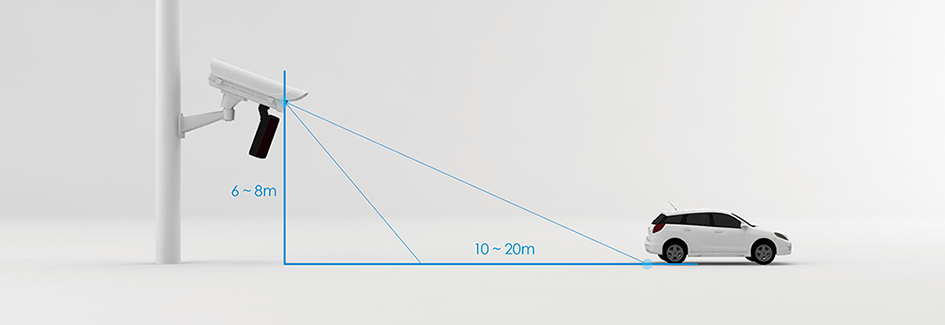

    Suggested Installation

    Product Details

    Technical Specifications - Kit

    System Information

    Model

    IP9165-LPR-v2 Kit (Street, 9-50mm, i-CS, Snap-in IR)

    IP9165-LPR-v2 Kit (Street, 12-40mm, Snap-in IR)

    Max. Speed

    60MPH (90 km/hr)

    IR Threshold

    IR on: 300 lux

    IR off: 600 lux

    RS485 configurable

    Shutter Time

    1/5 sec. to 1/32,000 sec.

    Illuminators

    48W, 10° ~ 30° remote control beam angle, embedded IR illuminator

    Capture Range

    Up to 35 meters

    Captured Lanes

    Dual Lane

    *Suggested width per lane: 3.5 ~ 4M

    Power Input

    AC 24V or DC 24V

    Power Consumption

    Max. 78 W (IR on)

    Max. 30 W (IR off)

    Suggested Power: DC 24V or AC 24V / 3.5A

    Weight

    6.2 kg

    Housing

    Weather-proof IP68-rated housing

    Vandal-proof IK10-rated housing

    Operating Temperature

    Starting Temperature:

    0°C ~ 60°C (32°F ~ 140°F)

    Working Temperature:

    -20°C ~ 60°C (-4°F ~ 140°F)

    -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater

    Humidity

    90% (non-condensing)

    Video

    Compression

    H.265, H.264, MJPEG

    Maximum Streams

    3 simultaneous streams

    Image Settings

    Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, EIS, video rotation, lens profile, remote focus (i-CS), Remove back focus, Scene Mode

    Network

    Users

    Live viewing for up to 10 clients

    Protocols

    802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

    Interface

    10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)

    *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

    ONVIF

    Profile G, S, T supported, specification available at www.onvif.org

    Solution Integration

    Video Motion Detection

    Five-window video motion detection

    Embedded Software

    Traffic VCA LPR+

    [Color: 9 ; Type: 5 (MOTORBIKE, CAR, VAN, TRUCK, BUS); Direction Recognition]

    VADP Package

    Stratocast, Trend Micro IoT Security

    Alarm and Event

    Event Trigger

    Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

    Event Action

    Camera:

    Event notification via digital output, email, HTTP, FTP, NAS server, SD card

    File upload via email, HTTP, FTP, NAS server, SD card

    ANPR Software:

    Socket client, socket server, onvif event, digital output trigger, HTTP(S), FTP, send event to Milestone VMS, wiegand protocol supported

    General

    Smart Focus System

    RBF (Remote Back Focus)

    IP Camera Connectors

    DC 12V power input *1

    AC 24V power input *1

    Digital input *2

    Digital output *2

    RS485 *1

    BNC *1

    Safety Certifications

    IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL

    System Requirements

    Operating System

    Microsoft Windows 10/8/7

    Mac 10.12 (Chrome only)

    Web Browser

    Chrome 58.0 or above

    Internet Explorer 11

    Other Players

    VLC: 1.1.11 or above

    Technical Specifications - Network Camera

    System Information

    Model

    IP9165-LPR-v2, (9-50mm, iCS)

    IP9165-LPR-v2, (12-40mm, iCS)

    IP9165-LPR-v2, (W/O Lens)

    CPU

    Multimedia SoC (System-on-Chip)

    Flash

    8 GB

    RAM

    2 GB

    Camera Features

    Image Sensor

    1/2" Progressive CMOS

    Maximum Resolution

    1920x1080 (2MP)

    Lens Type

    Vari-focal, Remote Focus (i-CS), Manual Focus

    Focal Length

    f = 9 ~ 50 mm [IP9165-LPR-v2 (9-50mm)]

    f = 12 ~ 40 mm [IP9165-LPR-v2 (12-40mm)]

    Aperture

    F1.5 ~ F1.6 [IP9165-LPR-v2 (9-50mm)]

    F1.8 ~ F2.3 [IP9165-LPR-v2 (12-40mm)]

    Iris Type

    i-CS [IP9165-LPR-v2 (9-50mm)]

    P-iris [IP9165-LPR-v2 (12-40mm)]

    (i-CS/P-iris/DC-iris all reserved)

    Field of View

    IP9165-LPR-v2 (9-50mm):

    42.8° ~ 8.3° (Horizontal)

    24.3° ~ 4.7° (Vertical)

    48.9° ~ 9.46° (Diagonal)

    IP9165-LPR-v2 (12-40mm):

    34.2° ~ 11.6° (Horizontal)

    18.7° ~ 6.6° (Vertical)

    39.8° ~ 13.3° (Diagonal)

    WDR Technology

    WDR Pro II

    Day/Night

    Yes

    Pan/Tilt/Zoom Functionalities

    ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)

    On-board Storage

    Built-in 32GB MicroSD card for LPR images

    Seamless Recording to MicroSD/SDHC/SDKC card and recording to network-attached storage (NAS)

    Video

    Maximum Frame Rate

    60 fps @ 1920x1080

    S/N Ratio

    66.2 dB

    Dynamic Range

    140 dB

    Audio

    Audio Capability

    Two-way Audio

    Compression

    G.711, G.726

    Interface

    External microphone input

    External line output

    Technical Specifications - IR Illuminator

    General

    Model

    AI-109, Snap-in IR illuminator

    Max. Distance

    Up to 35meters for LPR street application

    Beam Angle

    10° ~ 30° remote adjustable

    Power Input

    24VAC/28VDC with AE-23A enclosure

    Power Consumption

    48W

    Weight

    450 g

    Housing

    Weather-proof IP68-rated housing

    Vandal-proof IK10-rated housing

    Operating Temperature

    -40 °C ~ 50 °C (-40°F ~ 122°F)

    Color

    White

    Wavelength

    850nm

    Dimensions

    135 x 106 x 111 mm (5.3 x 4.2 x 4.4 inch)

    Certifications

    CE, FCC Class B, EN62471

    Integrated Control

    Built-in photocell for automatic IR on/off

    Technical Specifications - Application

    LPR Analytics Supported Regions

    North America

    Canada, USA* (*Small stacked characters on license plate are not supported)

    South America & Central

    Argentina, Bermuda, Bolivia, Brazil, Chile, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Paraguay, Peru, Trinidad and Tobago, Uruguay, Venezuela, Saint Lucia, Barbados, Jamaica

    Europe

    Andorra, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Ireland (ROI), Italy, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Spain, Sweden, Switzerland, Ukraine, United Kingdom, Great Britain, Albania, Lithuania, Latvia, Malta, Serbia, Kosovo, Montenegro, Macedonia, San Marino, Iceland

    Asia

    Abu Dhabi, Azerbaijan, Bahrain, Dubai, Hong-Kong, Indonesia, Israel, Lebanon, Macau, Malaysia, Philippines, Russia, Singapore, Taiwan, Turkey, Vietnam, Oman, Kuwait, Uzbekistan (*Arabic alphabets are not supported)

    Africa

    Angola, Burkina Faso, Kenya, Morocco, Nigeria, Senegal, South Africa, Tanzania, Tunisia, Uganda, Botswana, Ghana, Cameroon, Ethiopia, Djibouti, Mozambique

    Oceania

    Australia, New Zealand
